In the field of wire harness processing, PCB is one of the commonly used wire harness components. The two ends of the wiring harness have different specifications of cables and functional requirements. The PCB can carry out a good transfer and realize the connection function. Let's take a look at the application of the PCB.

Medical power harness

The above picture is the medical equipment power wiring harness customized by Kable-X Technology (Suzhou) Co., Ltd. It can be seen from the picture that one end is a four-core wire, and the other end is a five-core wire which connect to a circular connector. In addition, a small resistance is added in the middle of the wiring harness. In this case, a PCB is needed for switching. Kable-X connects the four-core, five-core wires and resistors through the PCB transfer process. This problem has been solved very well, and good results have been achieved, and we have been recognized by customers.

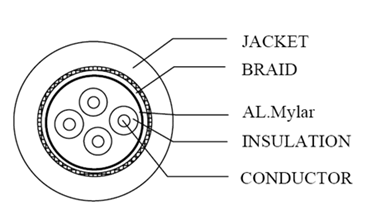

Four-core wire

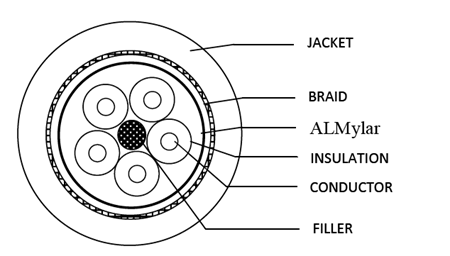

Five-core wire

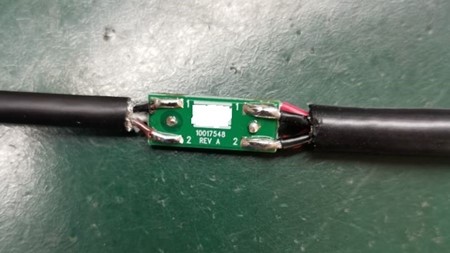

PCB

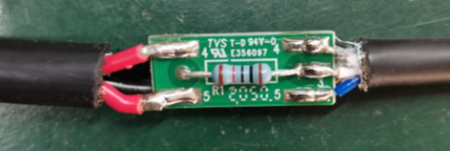

PCB transfer

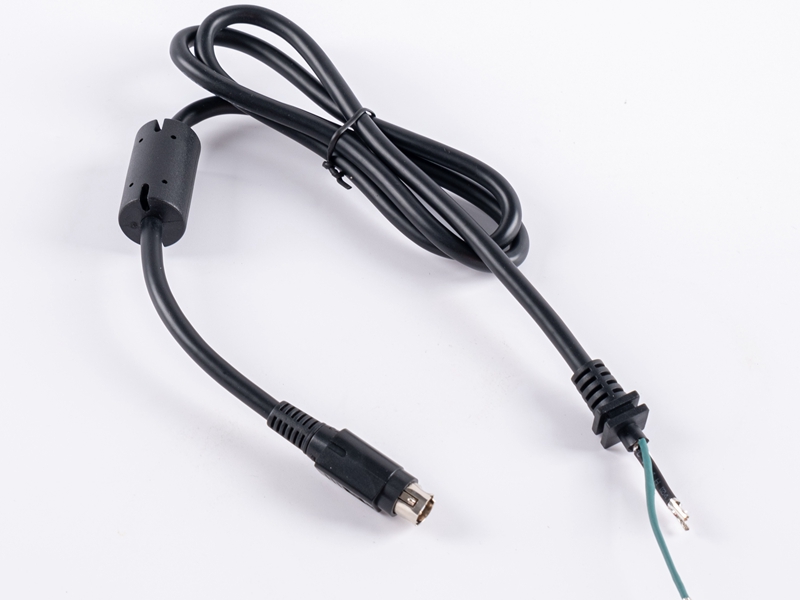

PCB transferred wire harness
