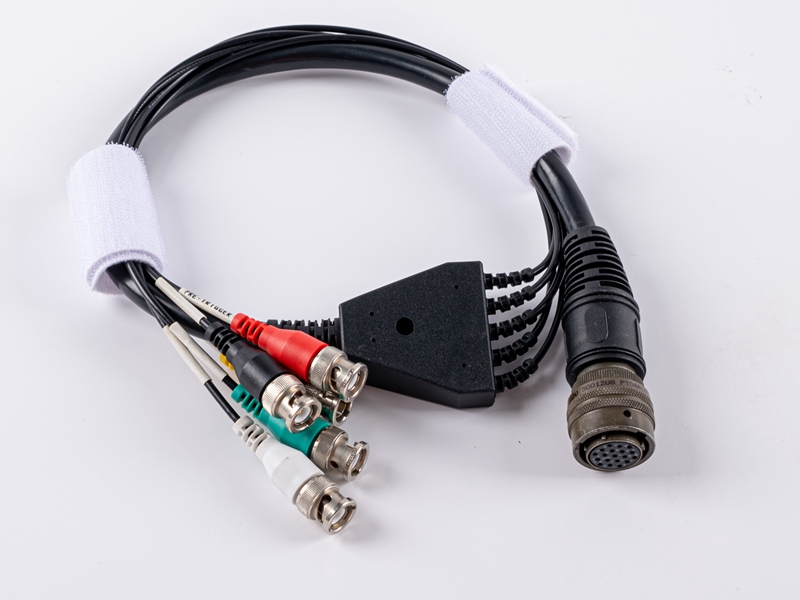

With the continuous development and expansion of the business of Kable-X, customers have continuously improved the quality requirements of the wiring harness. The department of quality control of Kable-X is constantly thinking about how to improve the quality of the wiring harness. Quality control starts from the purchase of raw materials. Only good raw materials can produce high-quality products.

Let's learn about Inspection of wire harness raw materials with Kable-X!

The raw materials of wire harness include connector, wire&cable, and electric components, etc. Kable-X purchase all raw materials from the well-known domestic and foreign manufacturers.  Thought the price is higher, Kable-X doesn’t hesitate to increase the cost for quality.

Now first let’s introduce the inspection of wire!

1. Requirements of wire appearance:

The cables are not allowed to have defects such as loose, crossing, folding, breakage and damage of core wire;

Corrosion and oxidation of the core wire are not allowed;

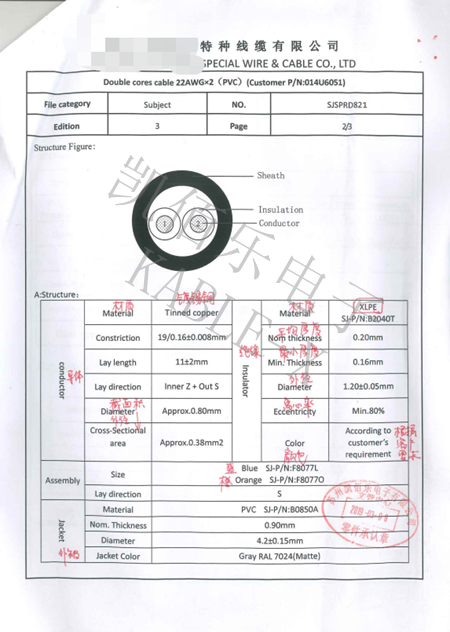

Insulated layer: material, thickness, diameter of wire and color should meet the requirements of drawing;

Surface of insulated wire should be smooth and uniform color;

The thickness of the insulation layer should meet the requirements. The insulation layer of the insulated wire should be tightly wrapped and easy to peel off, and the end of the insulated wire should be sealed;

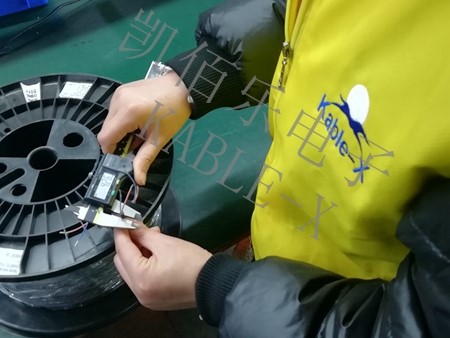

Wire harness wire outer diameter detection

Wire harness core wire diameter detection

2. Wire functional requirements:

Adjust the multimeter to the diode position, put the two test pens in contact with each other, there is a sound indicating that it works normally;

Confirm that the wire is qualified, then red and black pen touch two ends of a wire separately. If there is a sound, it indicates that the circuit of the wire is on; if no sound, it indicates that the circuit is disconnected.

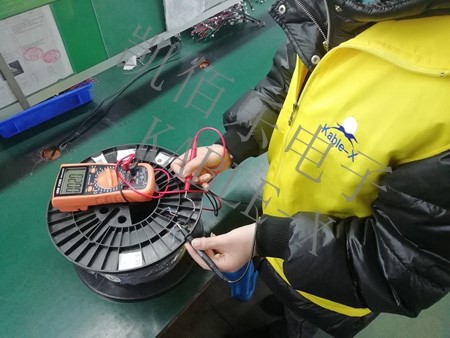

Cable Conduction Testing

Wire Inspection Form

Kable-X inspect the appearance and conduction performance in each roll of wire, and record the data in order to facilitate to trace the source. Wire material inspection is the first step to control quality of the wire harness, it is also the most basic work. Kable-X provide you the reliable high quality wire harness in the fields of industry, medical, vehicle, new energies, etc.
